Cron Job AWS Lambda Functions & How to Schedule Tasks
Cron jobs Are Usually Used to schedule the commands at a specific time. We use them to schedule different tasks like Taking backups scheduling instance Running, Monitoring the Status of system or system Maintenance tasks. Cron jobs are very helpful when you are administering a system in the cloud.
Steps:
1. Launch Ec2 instances
Create Ec2 Instance
2. Creating IAM Policy
Create the IAM policy for start and Stop the Instance.
Put Json Code
{
“Version”: “2012-10-17”,
“Statement”: [
{
“Effect”: “Allow”,
“Action”: [
“logs:CreateLogGroup”,
“logs:CreateLogStream”,
“logs:PutLogEvents”
],
“Resource”: “arn:aws:logs:*:*:*”
},
{
“Effect”: “Allow”,
“Action”: [
“ec2:Start*”,
“ec2:Stop*”
],
“Resource”: “*”
}
]
}
3. Creating IAM Role

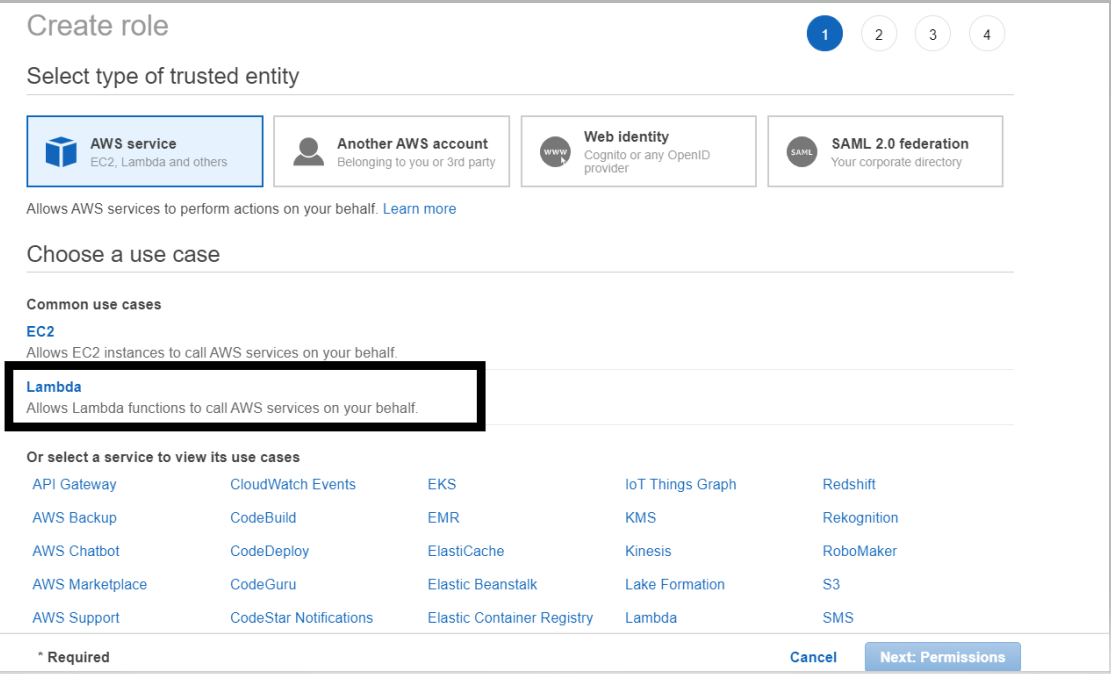

During Creating the IAM Role Select the Lambda Function instead of Ec2.Then Attached the IAM policy You created in Step 2.
4. Creating Lambda Function

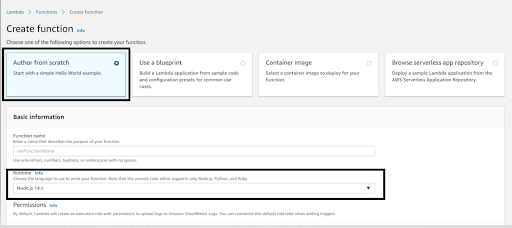

During Creating the Lambda function Select “Author from scratch”
Put the Function name and Select the Python 3.7 from Runtime. Choose an Existing Role in Permission.
You have to create two Lambda Function first for stopping and second for starting.
The code for both is below and You have to change region with your region in which instance is running. Put the Instance IDs.

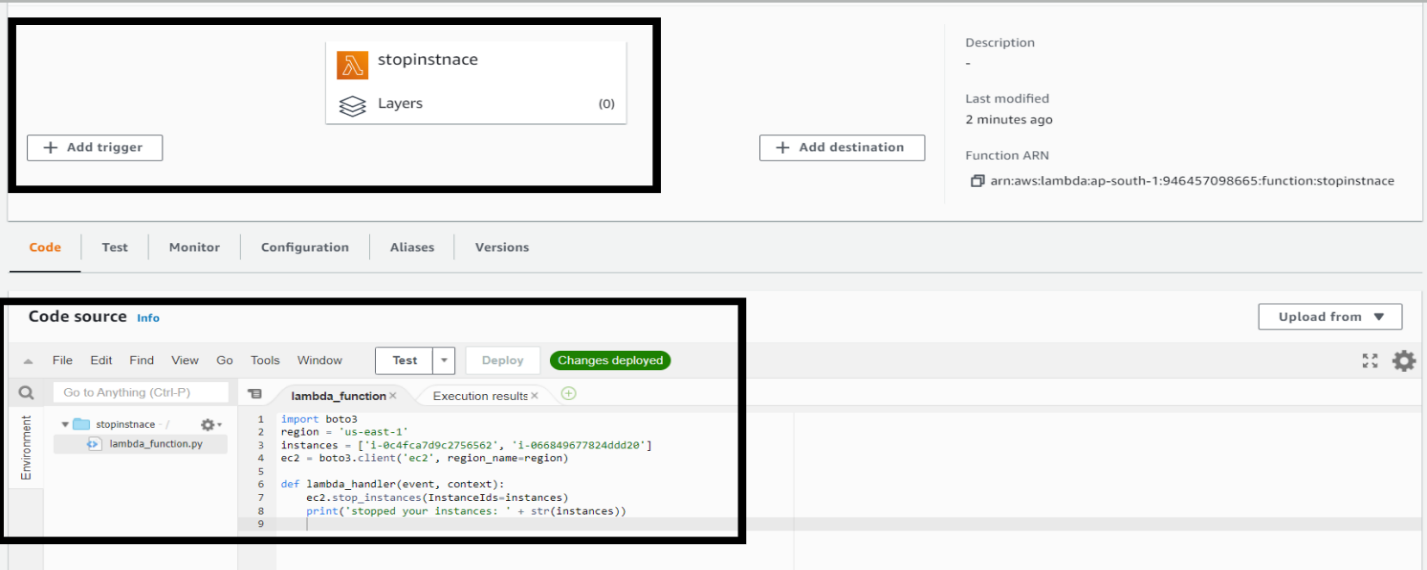

Stop the Ec2 Instance
import boto3
region = ‘Region’
instances = [‘i-12345’, ‘i-2345’]
ec2 = boto3.client(‘ec2’, region_name=region)
def lambda_handler(event, context):
ec2.stop_instances(InstanceIds=instances)
print(‘stopped your instances: ‘ + str(instances))

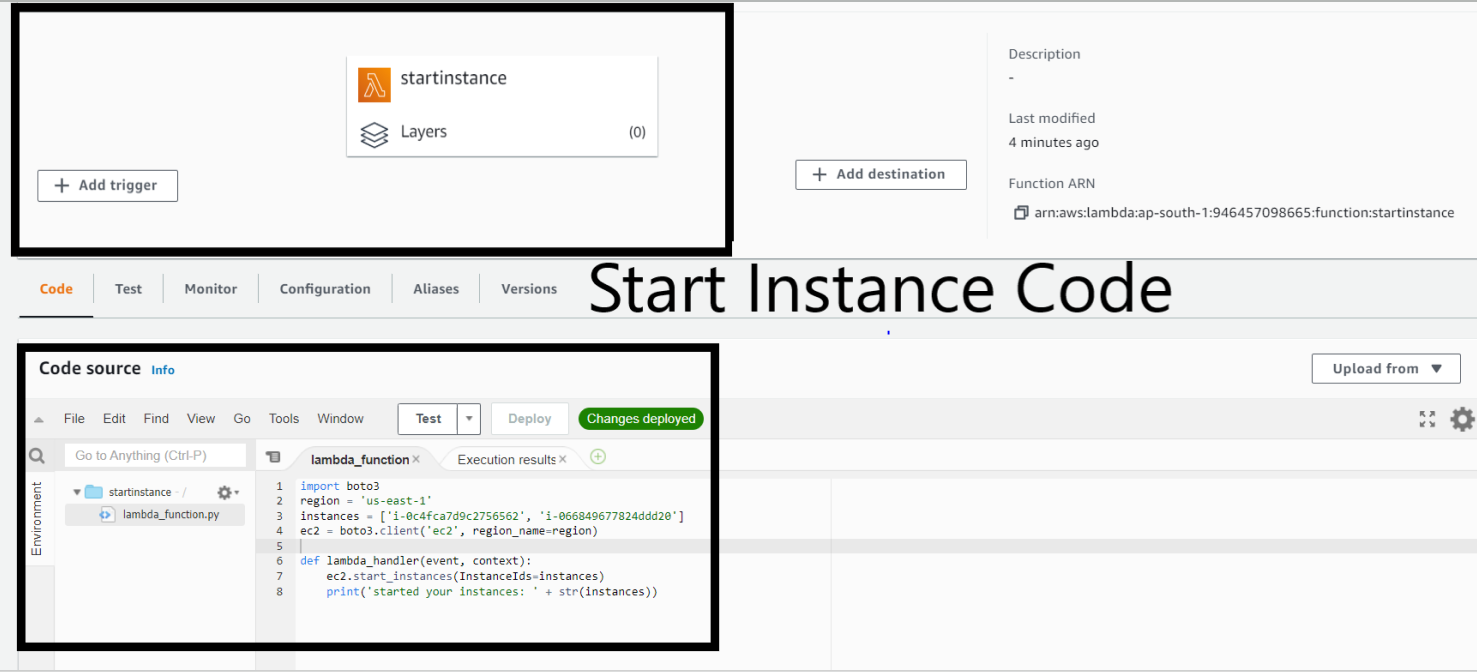

Starts the EC2 instances
import boto3 region = ‘Region’ instances = [‘i-12345’, ‘i-2345’] ec2 = boto3.client(‘ec2’, region_name=region) def lambda_handler(event, context): ec2.start_instances(InstanceIds=instances) print(‘started your instances: ‘ + str(instances))
When You create the function, You Can test These Two functions and These will stop and Start the instance.

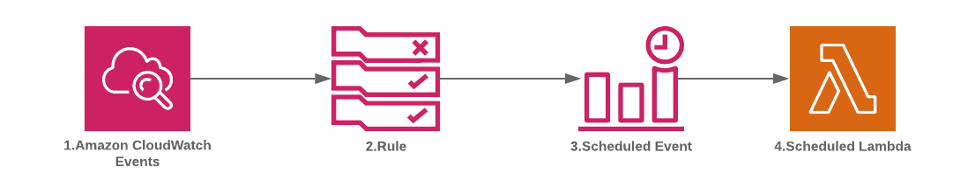

5. Cloud Watch
It will also Create the Logs in Cloud watch
You have to stop and start the instance Manually. Now to do it automatically

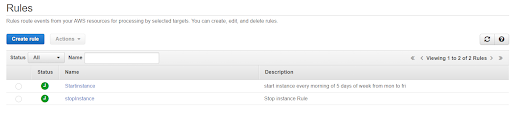

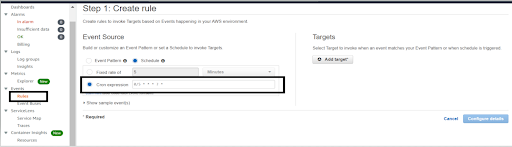

Create the Rule in events in Cloud watch.

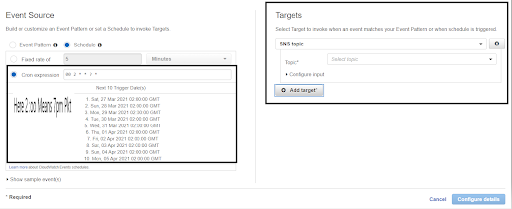

Now You need to learn How to put the value in the Cron expression
After Putting the Cron Expression we add the Target
In Target we will select Lambda and will select start and stop Instance. Like in the Given Fig we have chosen 7:00 Pm and we want Our instance should be stopped at that time so we will select Stop instance.
If You want to get notification you may add SNS as well.
Now the Same Procedure we will Repeat for Start Instance.
After Doing This You will see Your instances will stop Automatically at 7:00 PM and then will start at 7:00 AM Because Lambda Will trigger the Event at fixed Time.
Conclusion
By using Cron Jobs of Lambda function we can schedule the instance start and stop state. We can schedule the terminating and stopping state. It helps us to save the cost when we are not working, we can stop the resources and when we are working, we Can Restart the Resources.
